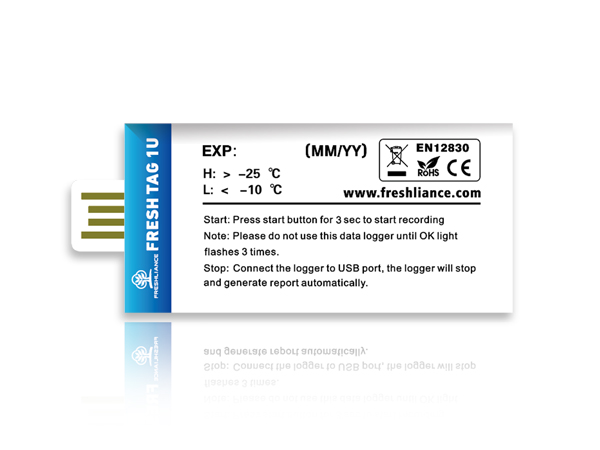

Fresh Tag 1U Disposable Temperature Data Logger
Temperature Range: -40℃~ +60℃
Temperature Accuracy: ±0.5°C(-20°C~40°C)；±1.0°C(others)
Memory Capacity: Max. 129600 readings
The Fresh Tag 1U Disposable Temperature Data Logger is a single-use device that ensures data accuracy and reliability. Before each use, the user can ensure that the logger is brand new and has no previous data. This recorder is mainly used in medicine, vaccines, blood, food, flowers, and other fields, and can accurately record temperature changes in the entire supply chain. It monitors temperatures in real time during transportation to detect any abnormalities.
Introduction
Fresh Tag 1U Disposable Temperature Data Logger can monitor the temperature in real-time during cold chain transportation to ensure that temperature-sensitive items are within the appropriate temperature range. By analyzing the recorded temperature data after the trip, manufacturers can understand the temperature fluctuations of items throughout the supply chain and take appropriate measures to improve product quality and safety.
Fresh Tag 1U is particularly suitable for cold chain storage and transportation with higher protection levels. is required. This disposable temperature data logger has a wide temperature measurement range of -40℃~+60℃. Its low power consumption and long battery life allow it to work for up to 180 days. It also has plug-and-play functionality and does not require any data management software.
Features
1. Large data storage: Fresh Tag 1U can store a large amount of temperature data, and has a retention time of several months. At the end of the trip, connecting the recorder to a computer will automatically generate an irreversible report with charts and tables without the need for cables or readers, allowing the user to analyze and review the data if needed.
2. Portable and easy to use: Fresh Tag 1U is compact in design and easy to carry and install. It fits easily in a box or shipping container without taking up much space.
3. Low cost: As a single-use device, the relatively low cost of the Fresh Tag 1U makes it a viable option for large-scale applications.
4. High precision: Fresh Tag 1U uses advanced sensor technology to provide high-precision temperature recording to ensure data reliability and accuracy.
5. Plug and play: Fresh Tag 1U can be used without additional equipment or software support. Users simply activate the logger, place it in the desired location, and start recording temperature data.
6. Data security: Fresh Tag 1U adopts a secure data storage and transmission mechanism to ensure data confidentiality and integrity.
7. High waterproof level: IP67 protection level, the protective plastic bag helps keep the logger dry and eliminates worries when transporting the product with cold bags, ice cubes, or wet environments.
Specification
|
Recording Type |
Single use |
Display |
LED |
|
Temperature Range |
-40℃~ +60℃ |
Connection |
USB, NFC (optional) |
|
Temperature Accuracy |
±0.5°C(-20°C~40°C)
±1.0°C(others) |
Compatible OS |
Windows, Mac |
|
Resolution |
0.1℃ |
Report Format |
PDF/CSV/PDF&CSV |
|
Memory Capacity |
Max. 129600 readings |
Alarm Points |
Customizable |
|
Battery |
3.0V CR2032 |
Report output |
Automatic generation without software |
|
Logging Interval |
1 minute~ 24 hours |
Working Days |
Max. 180 days |
|
Protection grade |
IP67 |
Standard |
CE, RoHS, EN12830 |
|
Start Delay |
0 minute~ 24 hours |
Shelf Life |
18 months |
|
Weight |
11g |
Dimension |
67mm L*27mm W *5mm H |
Applications
Food Industry: In the food supply chain, ensuring temperature control of food is critical. Fresh Tag 1U can be used to monitor the temperature of food during production, transportation, and storage to ensure food safety and quality.

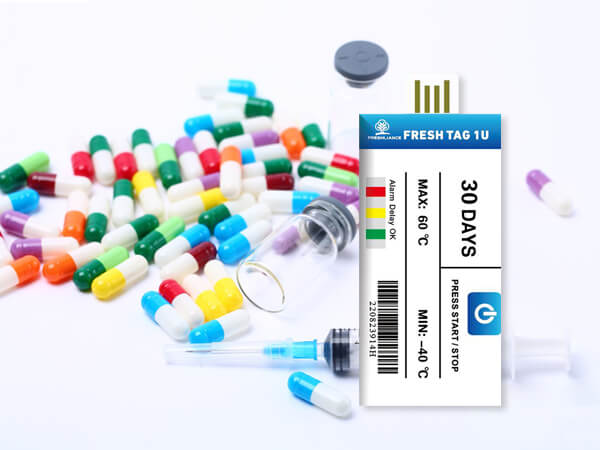

Drugs and biological products: In the pharmaceutical field, many drugs and biological products are temperature sensitive and need to be stored and transported within specific temperature ranges. Fresh Tag 1U can be used to monitor the temperature of pharmaceuticals and biologics to ensure their efficacy and safety.
Logistics and transportation: In the logistics and transportation industry, temperature control of goods is critical to the preservation and quality of many products. Fresh Tag 1U can be used to monitor temperature fluctuations during transportation to ensure the safe transportation of goods.
Cold chain management: In cold chain management, there is a need to ensure temperature control of frozen and refrigerated products throughout the supply chain. Fresh Tag 1U can be used to monitor temperatures in cold chain transportation and storage facilities to ensure product quality and freshness.
Laboratory and scientific research: In laboratory and scientific research, some experiments and samples need to be processed and stored under specific temperature conditions. Fresh Tag 1U can be used to monitor the temperature of laboratory equipment and reagents to ensure the accuracy of experimental results.
Cold storage facility management: In cold storage facility management, the temperature in the cold storage facility needs to be monitored to ensure the quality and safety of the cold storage products. Fresh Tag 1U can be used to monitor temperatures in cold storage facilities and provide data for temperature trend analysis and compliance verification.
