Fresh Tag 10T Disposable Temperature Data Loggers
Temperature Range: -30℃～+70℃
Temperature Accuracy: ±0.5℃ at full range (-30℃ to +70℃)
Memory Capacity: Max. 65000 readings；PDF&CSV: Max. 20000 readings
The Fresh Tag 10T disposable temperature data loggers have the ability to monitor temperature efficiently and uses advanced temperature sensing technology to provide high-precision temperature measurement. Whether in high or low-temperature environments, it can accurately record temperature changes and provide reliable data. Users can configure it on our free configuration software, which is simple to operate and easy to use.
Introduction
The Fresh Tag 10T disposable temperature data loggers have a large LCD display for intuitive temperature data display. Different models of Fresh Tag 10 T can be used for different days, up to 120 days. After the trip, connect this recorder to your computer to automatically generate PDF/CSV/PDF&CSV reports without using the software.
The Fresh Tag 10T has long-term monitoring capabilities and can continuously record temperature data to ensure complete tracking of temperature changes. This is very important for products that need to be transported or stored for a long time, such as pharmaceuticals and food. It can be widely used in all aspects of the cold chain such as refrigerated containers, refrigerated trucks, refrigerated bags, refrigerated cabinets, medical cabinets, freezers, laboratories, etc.
Features
1. Large-capacity storage: PDF: maximum 65,000 readings; PDF&CSV: maximum 20,000 readings. Users can download and analyze data as needed to understand trends and patterns in temperature and perform more in-depth analysis.
2. User-friendly interface: The recorder is equipped with a user-friendly interface that allows users to easily set parameters, view real-time data and export recorded temperature data. This simplifies usage and improves work efficiency.
3. Small size but large display: This temperature data logger has a compact shape and light design, but the LCD screen occupies a large proportion. Rich and diverse data can be displayed intuitively. Moreover, its green and red LED lights can indicate its different status.
4. Abnormal state alarm: Once the temperature exceeds the configured alarm range, the disposable temperature data logger will issue an alarm through the alarm symbol on the LCD screen, and the red LED light will flash.
5. IP65 Protection Rating: The protective plastic box helps keep the USB temperature sensor dry and eliminates worries when transporting the product with cold packs, ice, or in humid environments.

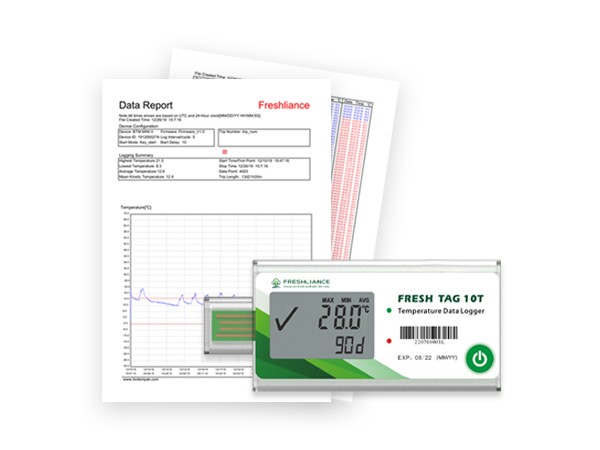

6. Automatic generation of encrypted reports: After the trip, connect the USB temperature recorder to the computer and an irreversible report with charts and tables will be automatically generated, no cables or readers are required.
Specification
| Model | Fresh Tag 10T | Working Days | Up to 120 days |
| Temperature Range | -30℃~70℃ | Temperature Accuracy | ±0.5℃ at full range (-30℃ to +70℃) |
| Logging Interval | Configurable | Connection | USB, NFC (optional) |
| Start Delay | Configurable | Protection Grade | IP65 |
| Memory Capacity | PDF: Max. 65000 readings
PDF&CSV: Max. 20000 readings |
Battery | CR2032 |
| Display | LCD, LED | Alarm Points | Max. 6 alarm points |
| Dimensions | 94mm(L)*41mm(W)*8mm(H) | Weight |
27.5g |
Applications
Fresh Tag 10 T Disposable Temperature Data Loggers are widely used in many fields. The following are some main application fields:
Food Industry: In the food supply chain, ensuring the proper temperature of food is critical. Fresh Tag 10 T can be used to monitor the temperature of food during production, transportation, and storage to ensure food safety and quality. It can provide accurate temperature data to help users quickly find and solve temperature anomalies.
Pharmaceutical industry: In the pharmaceutical field, many drugs and biological products are extremely temperature sensitive and need to be stored and transported within a specific temperature range. Fresh Tag 10 T can be used to monitor the temperature of pharmaceuticals and biologics to ensure their efficacy and safety. It provides reliable temperature data recording to help medical professionals monitor and manage the temperature in real-time.
Logistics and transportation: In the logistics and transportation industry, temperature control of goods is critical to the preservation and quality of many products. Fresh Tag 10 T can be used to monitor temperature fluctuations during transportation to ensure the safe transportation of goods. It has the ability to monitor for long periods of time and provides reliable temperature recording.
Cold chain management: In cold chain management, there is a need to ensure temperature control of frozen and refrigerated products throughout the supply chain. Fresh Tag 10 T can be used to monitor temperatures in cold chain transportation and storage facilities to ensure product quality and freshness. It provides large-capacity storage and high-precision temperature measurement, helping cold chain managers effectively monitor temperature data.
Laboratory and scientific research: In laboratory and scientific research, some experiments and samples need to be processed and stored under specific temperature conditions. Fresh Tag 10 T can be used to monitor the temperature of laboratory equipment and reagents to ensure the accuracy and repeatability of experimental results. It provides a user-friendly interface and simple operation to facilitate temperature monitoring and recording by scientific researchers.
