Fresh Tag 1 USB Temperature Data Logger
Temperature Range: -30℃~+70℃
Temperature Accuracy: ±0.5℃ at full range (-30℃ to +70℃)
Memory Capacity: Max. 129600 readings
The Fresh Tag 1 USB Temperature Data Logger is an innovative device for monitoring and recording changes in ambient temperature. With high precision and high sensitivity, it has been welcomed by industries such as food, pharmaceuticals, vaccines, and cosmetics. It is widely used in cold chain storage and transportation of food, pharmaceuticals, etc., providing users with a reliable way to ensure the safety of products Quality and safety.
Introduction
The Fresh Tag 1 USB Temperature Data Logger is ideal for monitoring and recording temperature changes of sensitive goods during transit. It is low-cost, easy to operate, and takes up little space. Moreover, the instrument has a built-in PDF file generation function. Plug the recorder into a PC or mobile phone through the USB 2.0 interface to generate an unmodifiable data report in PDF format. It will be more convenient and simple for users to analyze data after the trip.
Freshliance provides different models of Fresh Tag 1 USB temperature data loggers, the trip can cover 7, 15, 30, 60, 90, 120, or even 180 days, which can provide users with a simple and efficient solution for temperature monitoring. The product has a compact structure, lightweight, waterproof packaging, and is made of food-grade packaging materials, making it more environmentally friendly and safe whether used in the food or pharmaceutical industries.
Features
1. Accurate temperature monitoring: The product is equipped with a high-precision temperature sensor, which can accurately monitor changes in ambient temperature. The accuracy can reach ±0.5℃ at full range (-30℃ to +70℃). Whether in cold storage, in transit, or in the laboratory, it provides reliable data.
2. Large-capacity data storage: This data logger has a large-capacity storage space and can record long-term temperature data. Users can customize the recording interval and recording cycle as needed to meet the needs of different application scenarios.

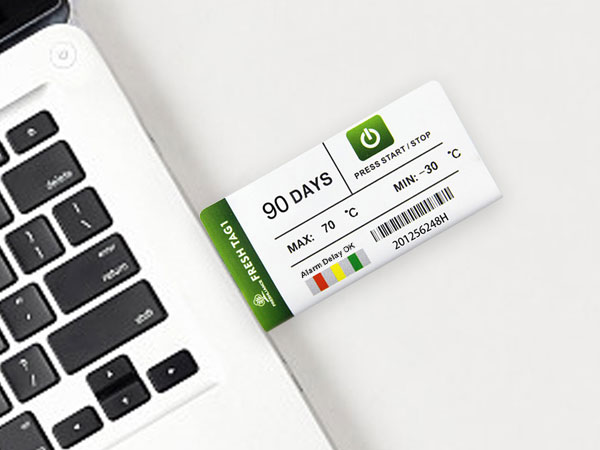

3. USB interface and easy to use: It has a simple USB interface, which can be easily connected to a computer or other equipment. PDF reports can be automatically generated without software, and data can also be exported and shared through the USB interface.
4. High reliability: This data logger uses high-quality materials and reliable workmanship to ensure its stability and durability under various environmental conditions. It is waterproof, dustproof, and shock-resistant, and can work normally in harsh environments.
5. Simple operation and convenient use: All data and parameters are preset by the factory, and the user can directly turn on the product after getting it, without too much setting operation.

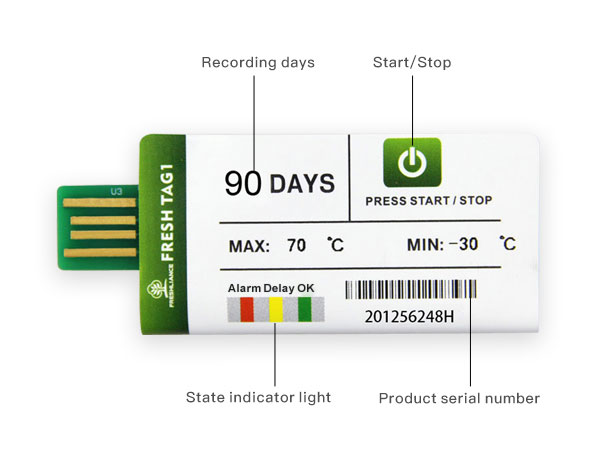

6. Low power consumption and good waterproofing: The product has an LED indicator light, the battery model is 3.0V CR2032, and the product comes with waterproof packaging with a waterproof rating of IP67, so it can be safely placed in the cold chain packaging.
Specification
|
Model |
Fresh Tag 1 |
Type |
Disposable |
|
Display |
LED indicator |
Run Days |
Max. 180 days |
|
Temperature Range |
-30℃~+70℃ |
Temperature Accuracy |
±0.5℃ at full range (-30℃ to +70℃) |
|
Resolution |
0.1℃ |
Memory Capacity |
Max. 129600 readings |
|
Logging Interval |
1 minute-24 hours |
Start Delay |
0 minute-24 hours |
|
Report Output |
Automatic generation without software |
Report Format |
PDF/CSV/PDF&CSV |
|
Alarm Point |
Customizable |
Battery |
3.0V CR2032 |
|
Connection |
USB, NFC (optional) |
Compatible OS |
Windows, Mac |
|
Weight |
11g |
Dimensions |
67mm *27mm *5mm |
|
Protection Grade |
IP67 |
Certifications |
CE, RoHS, EN12830 |
|
Shelf Life |
18 months |
Applications
Fresh Tag 1 USB temperature data logger is widely used in food processing, transportation, and storage. It can help monitor the temperature of food, ensuring its freshness and safety throughout the supply chain.
For example, meat and fish products (also known as frozen foods) are perishable foods. Excessively high temperatures will cause the products to quickly deteriorate and rot. Use the Fresh Tag 1 during cold chain transportation or storage, which can monitor and record the ambient temperature to ensure food quality and safety.
When it comes to fruits and vegetables, the most important thing is to prevent them from ripening prematurely. Fruits, vegetables, and flowers are highly perishable commodities that require appropriate environmental monitoring during post-harvest processing to maximize freshness, quality, and shelf life from field to fork.
In the pharmaceutical process, temperature control of pharmaceuticals is crucial. The temperature data logger can help pharmaceutical manufacturers monitor and record the temperature of pharmaceutical products to ensure their quality and effectiveness.
In the agricultural field, temperature data recording helps determine the best planting season and manage the growing environment of crops; it is also of great help to the breeding industry, which can help monitor the temperature of the breeding environment and help animals maintain a suitable production environment. Grow well.
The Fresh Tag 1 USB temperature data logger provided by Freshliance can be widely used in environments that need to monitor and record temperature, ensuring that every temperature change will be tracked and recorded. Provides irreversible PDF logging in any format, CSV temperature history, and online IOT logging. If cold chain transportation or storage needs to raise a cold chain performance objection, the temperature data logger is necessary evidence for the product owner and the cold chain carrier.
